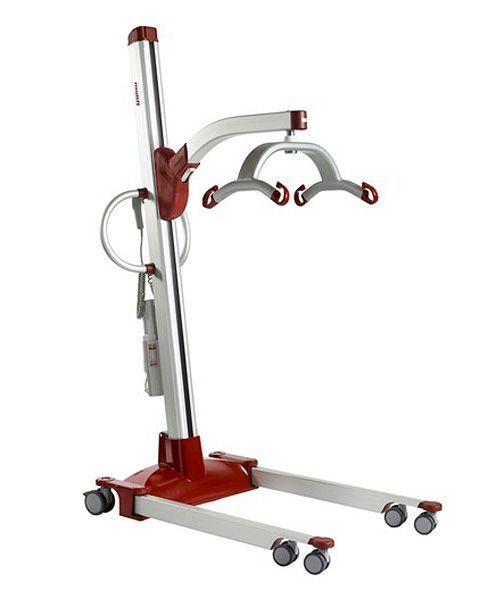

Molift Partner 255

With vertical hoisting pattern for excellent stability

Molift Partner 255 provides an ideal solution for hoisting with high complexity situations in acute and critical care areas in both hospitals and care facilities. With an excellent hoisting range: 39 – 168 cm the Molift Partner 255 allows easy hoisting from the floor as well as high surfaces. The straight vertical column in combination with the fixed sling bar provides excellent stability and maintains the user at a good distance from the column.


Stability, manoeuvrability and hoisting capacity
With a total weight of 42.5 kg Molift Partner 255 is one of the lightest in its category. Combined with excellent construction design and wheel solution it becomes very easy to manoeuvre with a safe working load of 255 kg.

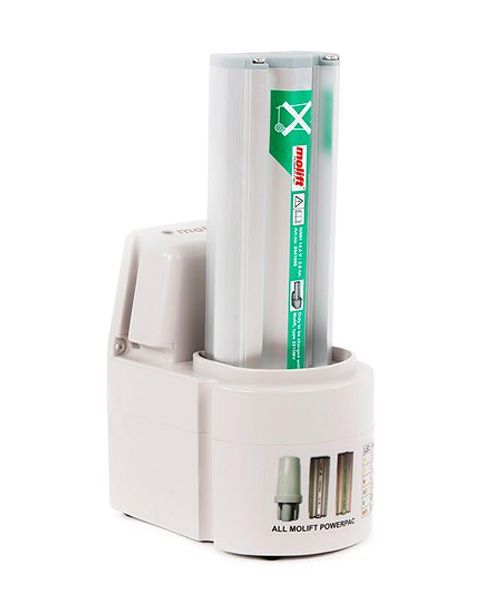

Equipped with environmentally friendly NiMh-battery.

REQUEST PRODUCT INFO

Molift Partner 255 brochure

FEATURES

High safe working load

Molift Partner 255 has a safe working load of 255 kg.

A safe and stable position

The vertical hoisting pattern keeps the user at the same distance from the column during the entire lift, creating a secure and stable position.

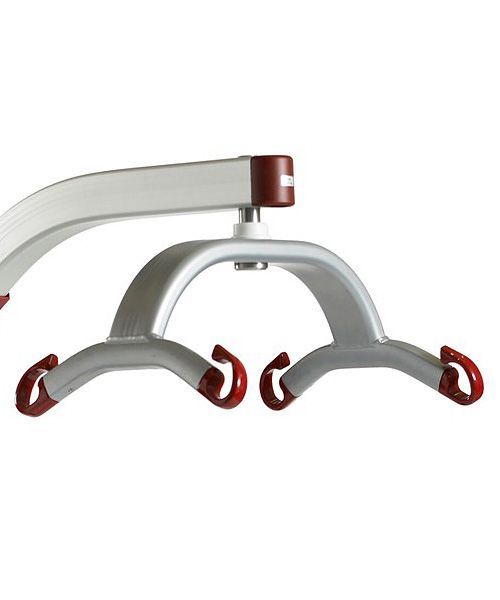

Spacious hoisting positioning

The 4-point sling bar ensures a comfortable and spacious hoisting position and a stable transfer.

Specifications

  • Battery: NiMh 26,4 V-2,6 Ah
  • Battery charge time (hours): 3
  • Hoisting height max (mm): 1680
  • Hoisting height min (mm): 390
  • Hoisting interval (mm): 1290
  • Hoisting speed 75 kg (mm/sec): 30
  • Length (mm): 1285
  • Material: Aluminium, steel
  • Maximum user weight (kg): 255
  • Rated performance: 50 hoists at: 75 kg and 500 mm
  • Service software: Molift Service Tool
  • Width chassis, legs open inner (mm): 1065
  • Width chassis, outer (mm): 690

Item number

Standard: M13000

Low base: M13050

With support arms: M13100

Standard with scale: M13001

Low base with scale: M13051

With support arms and scale: M13101


Leg height (mm)

Standard: 115

Low base: 60

With support arms: 115

Standard with scale: 115

Low base with scale: 60

With support arms and scale: 115


Weight (kg)

Standard: 42,5

Low base: 45

With support arms: 50

Standard with scale: 42,5

Low base with scale: 45

With support arms and scale: 50
