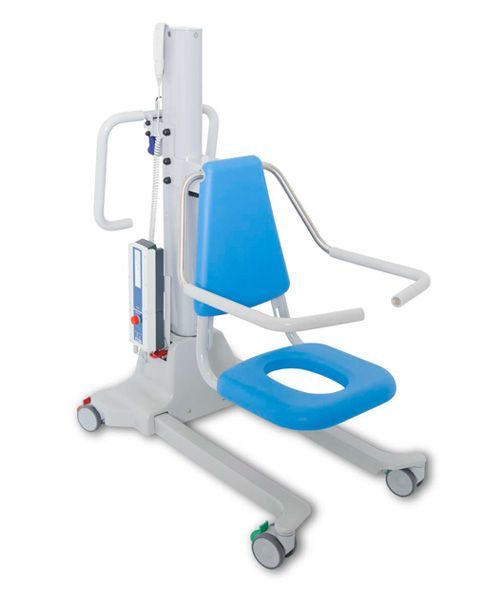

Confort Medic CM1000

A ROBUST AND COMFORTABLE LIFT

The CM1000 bathtub hoist offers front access to the tub, thus freeing both sides of the tub to make caregivers work easier. It also helps resident to keep a safe position on the chair and reduces the slipping effect inside water. Designed to offer more space and comfort, it has an ultra-robust structure, resistant and reliable. Equipped with a manual emergency lowering system, a multifunction remote control with battery level display, removable batteries and several options, the CM1000 bathtub hoist meets the highest requirements of modern healthcare environments. For facilities equipped with reclined shape tub, a side access version (CM2000) is offered. Whatever your project, do not hesitate to contact us and it will be our pleasure to propose you a solution adapted to your needs.

BENEFITS OF THE CM1000 CHAIR

• Chair made of stainless steel and aluminum
• Ultra robust structure and mechanism
• Bottom structure with resistant and easy to clean plastic covers
• Swivel and removable armrests (closed or opened at front)
• Durable silicone-covered handles and armrests easy to disinfect
• Easy to maneuver with sealed double wheels
• Closed-cell injected resin seat and backrest for soft, comfortable and easy-to-disinfect surfaces
• 2 wheels with total lock
• 2 wheels with directional lock
• Lifting stroke: 444 mm to 1 054 mm (17.5 in - 41.5 in)
• Maximum capacity: 181 kg (400 pounds)
• 24 V soft and very quiet Linak electric actuator
• Multifunction remote control
• 2 positions safety belt: hip position and upper body position
• Preventative maintenance warning light
• Easy to repair with standard components
• Suitable for showering with optional control box cover
• 100% designed and manufactured in Quebec, Canada


OPTIONAL FEATURES AVAILABLE

ELECTRICAL BRAKE SYSTEM

The electric brake system allows the attendant to easily lock the 2 rear wheels of the chair using the remote control. The chair is quickly secured for transfers, without any foot action of the caregiver. In addition, the wheels can be manually locked or unlocked if required.

ARMRESTS

Depending on your preference or according to the working methods in place at your facility, ConfortMedic offers the possibility to install armrests curved upwards (opened) or curved inwards (closed) at no additional cost.

STAINLESS STEEL BED PAN WITH LID

Particularly necessary when moving out of the bathroom, the stainless steel bed pan offered by ConfortMedic slides easily under the seat thanks to the supplied removable support. A bed pan lid allows the caregivers to move it safely for cleaning.

DIGITAL SCALE

In order to avoid additional transfers of the residents and to increase the efficiency of the caregivers, it is possible to add a scale with digital display of the resident’s weight. The scale can be configured in kg or in pounds.

WIDER FRAME BASE

To ensure the compatibility of the CM1000 chair with some older bath models (tubs with long legs) or for some very specific uses, it is possible to opt for a wider base structure.

BENEFITS OF THE CM1000 CHAIR

BENEFITS FOR CAREGIVERS

• Very robust and easy to move chair
• Smooth and quiet operation
• Remote control with battery level display
• Removable battery and external charging station
• Several options to optimize working conditions

BENEFITS FOR MANAGERS

• Lift mainly made of stainless steel and aluminum
• Parts and components available directly in Canada
• Low acquisition cost and high performance
• Affordable spare parts and low cost maintenance

BENEFITS FOR RESIDENTS

• Seat and backrest comfortable and easy to disinfect
• 2 positions safety belt
• Easy transfer from the front of the chair (intuitive)

BENEFITS FOR TECHNICAL SERVICES

• Structure and mechanism of great robustness
• Remote control with fault display
• Easily available spare parts
• Designed for an institutional environment
• Free technical support by phone at ComfortMedic
